MV5 VT0

Data Matrix CodeScribe markingBenchtop

Low noise high performance

High marking quality with minimum noise level

Videos

Sample markings

Downloads

Product details

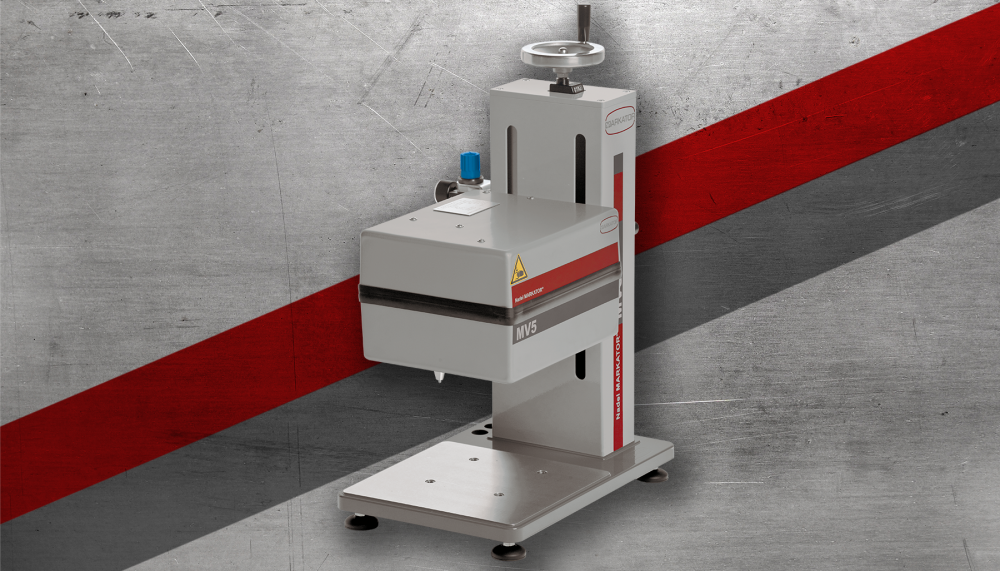

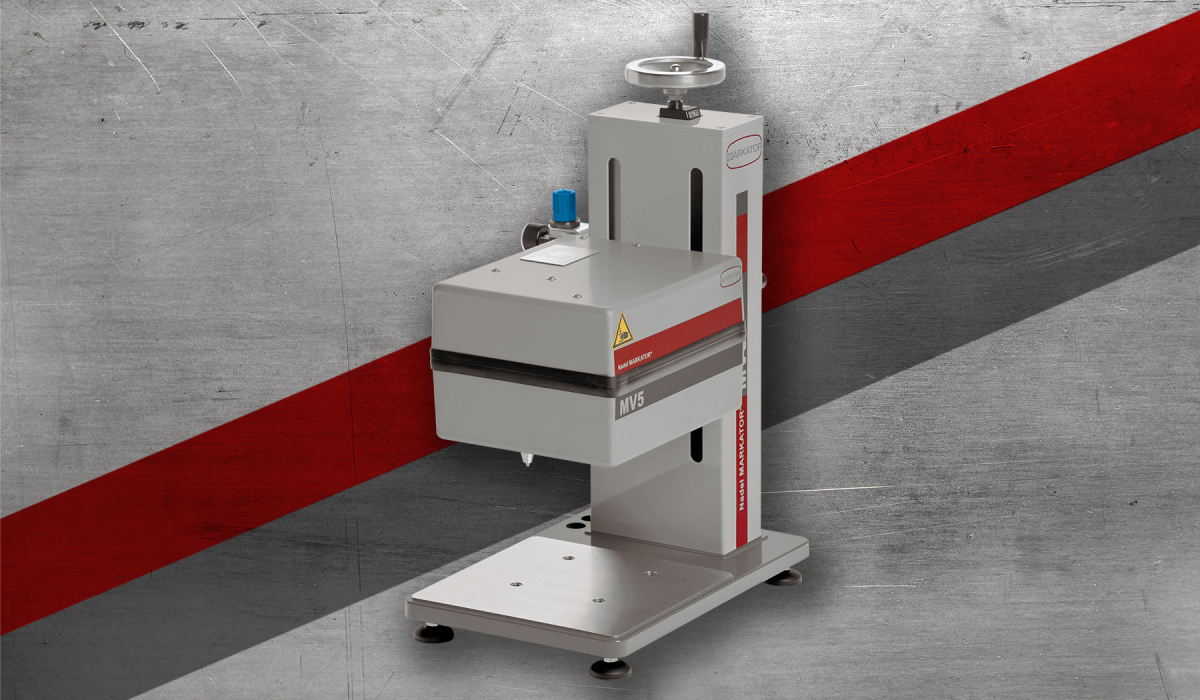

The table marking system MV5 VT0 has a marking area of 100 x 100 mm. The scribe marker is standard equipped with a high-quality marking tool - consisting of a diamond marking pin and a maintenance-free stylus. The marking results are of particularly high quality. The marking head is maintenance-free and offers optimum wear properties.

MECHANICS

High-quality linear guides in combination with precision ball bearing screws provide the marking head with high stability and highest repeat accuracy
Optimum wear properties
Due to its robust mechanics, the MV5 VT0 marking head is particularly suitable for marking high-precision Data Matrix Codes - even in very small sizes
High functionality through modular MARKATOR design system

EXACT

Maximum marking quality at high speed
Different marking forces are infinitely adjustable by a pressure controller
Extremely quiet and high-quality marking due to optimized scribe technology

COLUMN

Highest stability of the machine table due to two solid guides
Fast height adjustment of the scribe marker via handwheel, which is up to 4x faster than conventional systems
Integrated digital height display for precise positioning

Marking area (x/y): 100 x 100 mm

required space of the table marking system: 342 x 515 mm

Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps

Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks

Fonts: Standard, similar to DIN 1451 in a continous line or in single dot characters, size 5 x 7 and 9 x 13

Resolution of the stepping motors: 0,0125 mm for extren high marking quality

Marking direction: Any, from 0° to 360°

Central control units

Here you will find the suitable central control units for this marking head.

	MV5 ZE 301 XL	MV5 ZE 401 XL

19" version:	yes	yes
Plug-in card slots:	2	4
Operation / Data input:	Clavier USB	Clavier en feuille
Interfaces:	3x USB-A, 1x USB-B, RJ45	2x USB-A, 1x USB-B, RJ45
IP54:	no	yes
Communication cards (optional):	non	PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)
Ethernet TCP/ IP (optional):	yes	yes
Preconfigured PLC function module, e.g. TIA (optional):	no	yes
Safety relay module (optional):	yes	yes

MV5 ZE 301 XL

19" version:
ja

Plug-in card slots:
2

Operation / Data input:
Clavier USB

Interfaces:
3x USB-A, 1x USB-B, RJ45

IP54:
nein

Communication cards (optional):
non

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
nein

Safety relay module (optional):
ja

MV5 ZE 401 XL

19" version:
ja

Plug-in card slots:
4

Operation / Data input:
Clavier en feuille

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja

Overview of all central control units
